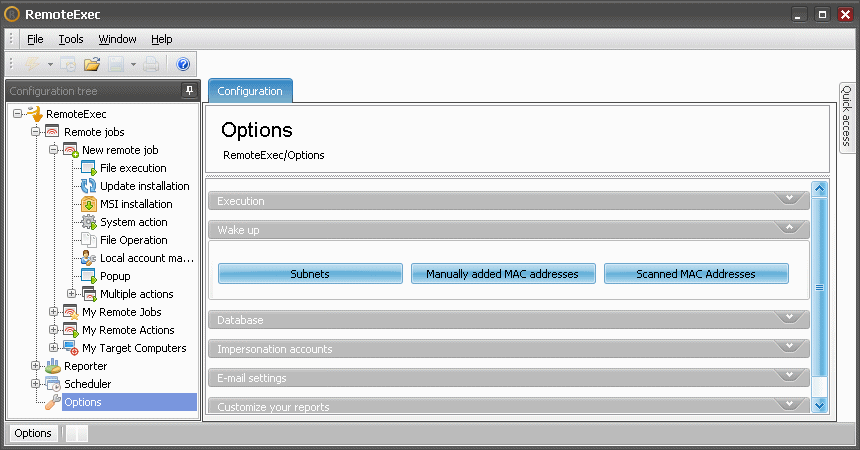

You will be able to configure here all settings for the Wake-On-Lan feature available in the System action.
If you click on Scanned MAC Addresses you will be able to see all MAC addresses already scanned on your network.
You can schedule retrieving MAC addresses and subnets with the System action (Get wake up info) but RemoteExec will automatically get wake up information from computers on which a remote execution has been started.
If for any reason, RemoteExec
is unable to retrieve the MAC address
from some computers you can add them manually.

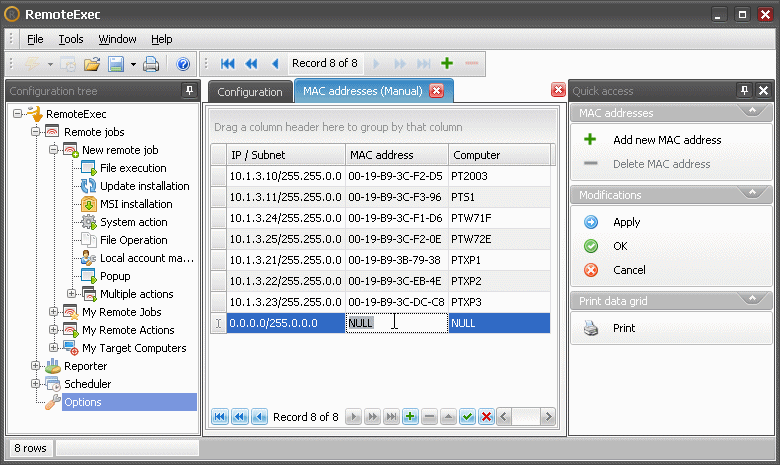

Click on Manually added MAC address
and then Add new MAC address in
the Quick access pane.
For each MAC address, you need to specify the name of the concerned computer, the MAC address of course and select the Subnet where the computer is located.

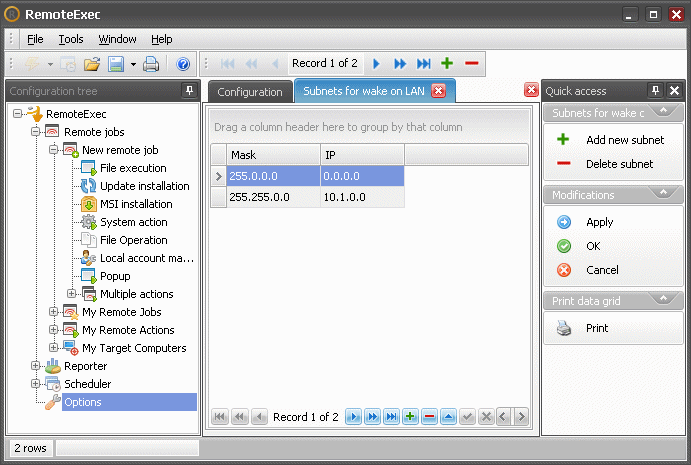

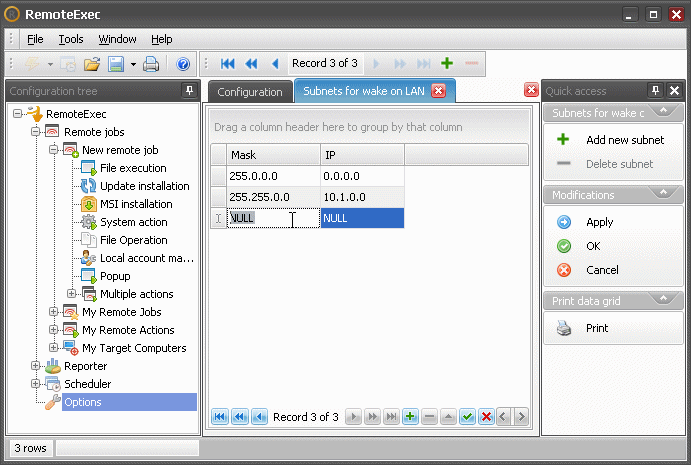

If some Subnets are not yet detected, you can add them manually by clicking on Subnet and Add new subnet in the Quick access pane.
For each Subnet you need to add the IP address and the Mask.
You can also configure when RemoteExec
will automatically scan MAC addresses
creating a
Scheduled Task from System action (Get
wake up info).
We advice you to specify a schedule during working hours when most of your
computers are available. The scan doesn't use much network bandwidth so
this should not be a problem.
